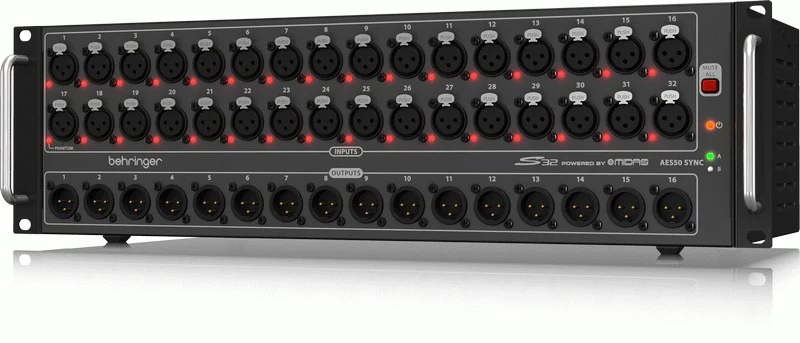

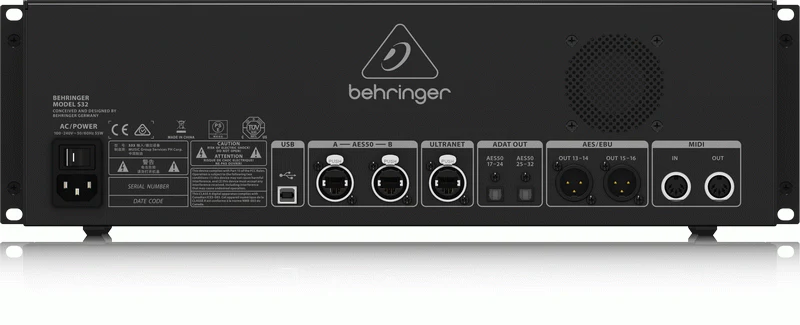

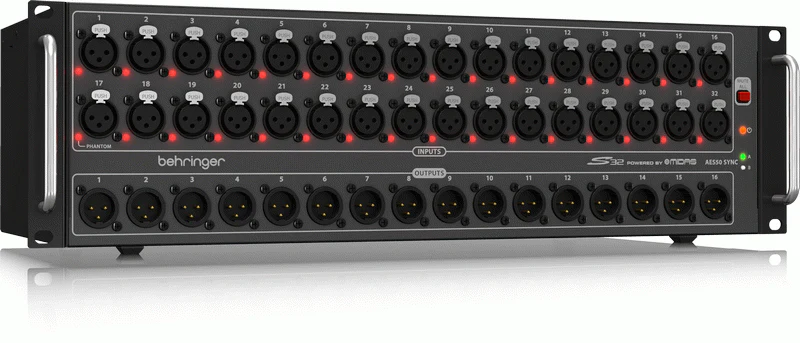

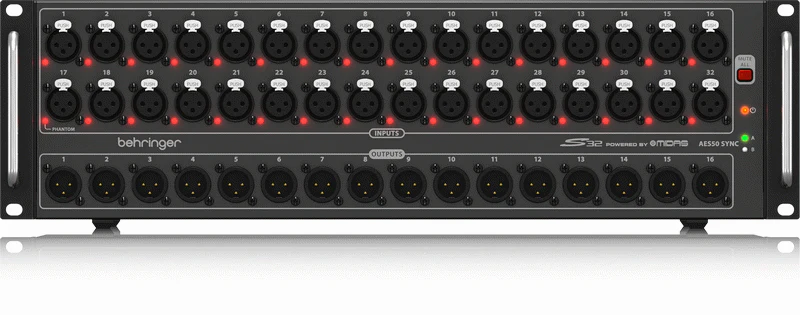

BEHRINGER S32 DIGITAL SNAKE INTERFACE

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The ultra-affordable S32 digital stage box bridges the gap between the onstage talent, Front of House (FOH) console and the rest of the world with its ultra-fast and rock-solid performance!

The S32 provides 32 MIDAS-designed remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable (up to 328 ft / 100 m). While KLARK TEKNIK, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the S32 so very affordable.



• 32 MIDAS-designed, fully programmable mic preamps for audiophile sound quality
• 16 analog, servo-balanced XLR outputs
• AES50 network ports featuring KLARK TEKNIK’s SuperMAC networking capability for ultra-low jitter and latency
• ULTRANET Connectivity for BEHRINGER's P16 personal monitoring system for in-ear applications
• Digital audio and control connectivity for TURBOSOUND speaker systems with ULTRANET networking capability
• Automatic AES50 stage-split mode when connected between BEHRINGER X32 Series FOH and monitor consoles
• Dual AES50 ports for cascading additional S16, SD16 or SD8 stageboxes—no merger or router required
• 2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs
• Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors
• Mute All function for quietly patching any inputs on stage
• MIDI In/Out for bi-directional communication between BEHRINGER X32 Series console and on-stage MIDI devices
• Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
• USB connector for system updates via PC
• Planet Earth switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
• Built like a tank yet compact, all-steel 3U rack-mount chassis
• Designed and engineered in Germany

I/O Box with 32 Remote-Controllable MIDAS Preamps, 16 Outputs and AES50 Networking featuring KLARK TEKNIK SuperMAC Technology
