Mixer / amp case - 19" rack equipment case workstation- 10RU mixer, 6RU amplifier, 2 draws

BULKY ITEM - EXTRA FREIGHT CHARGES MAY APPLY PLEASE ENQUIRE

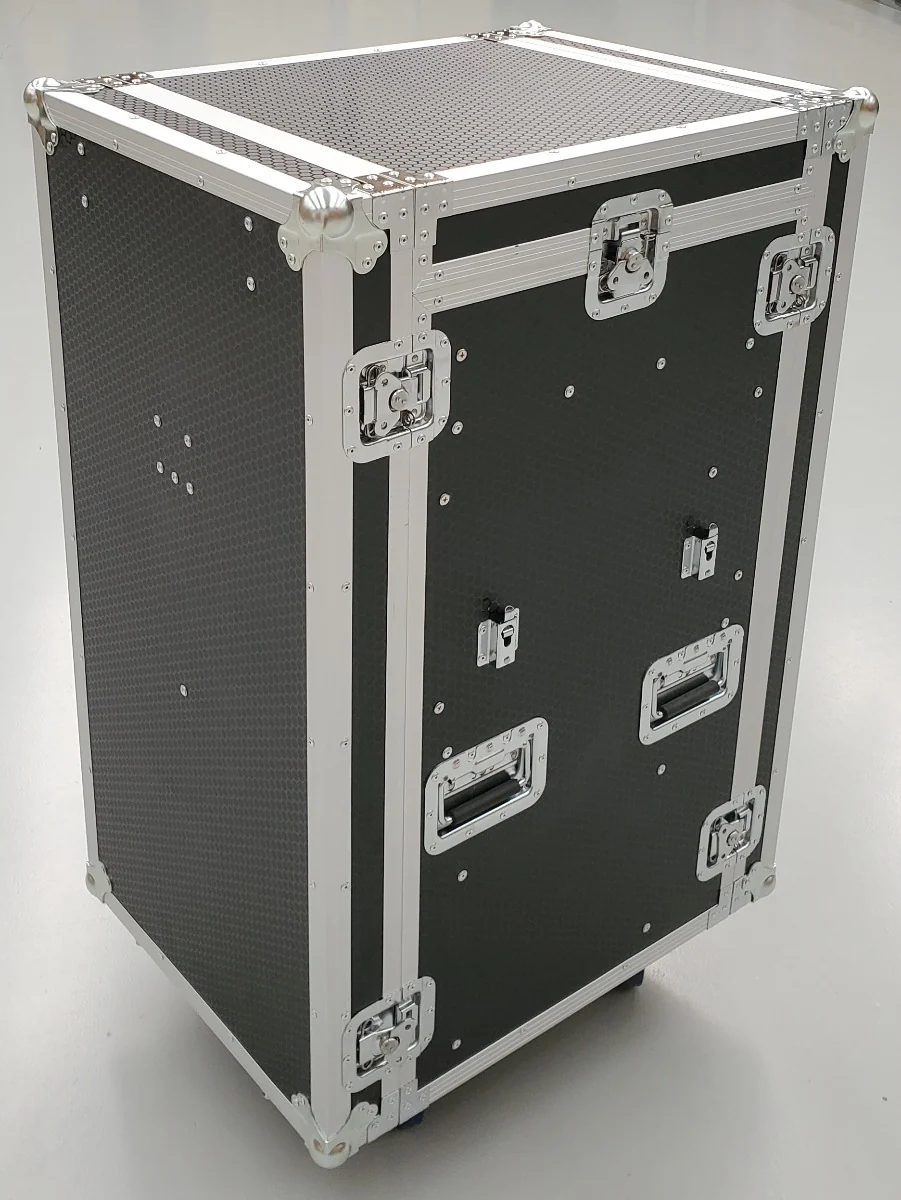

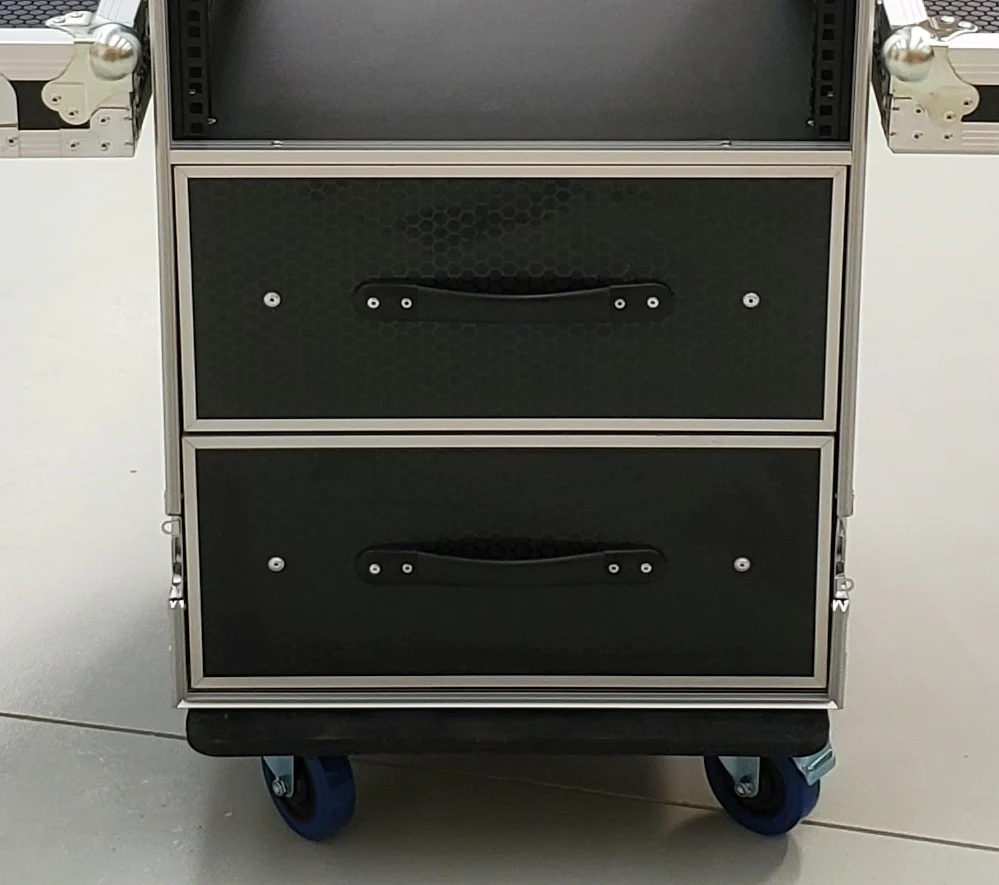

Made of durable 3/8” ply, this case is designed to house any 19” amplifier or combination of effect units of up to 6 rack units and 2 draws. Features hight adjustable 10RU mixer mount for comfortable mixing position. Front, back and top panels can be completely removed. Two reinforced handles on each side of the case are fitted along with the high quality latches and steel ball corners for extra protection. Front and back lids house foldable table leg which is cussioned by foam lining. When unfolded the lid can be hooked onto the side of the case which results in extra table space on both sides of the case.

Features:
• Durable and robust construction
• Removable lid with two latches
• Removable front and back panels with two latches
• Heavy duty steel corners

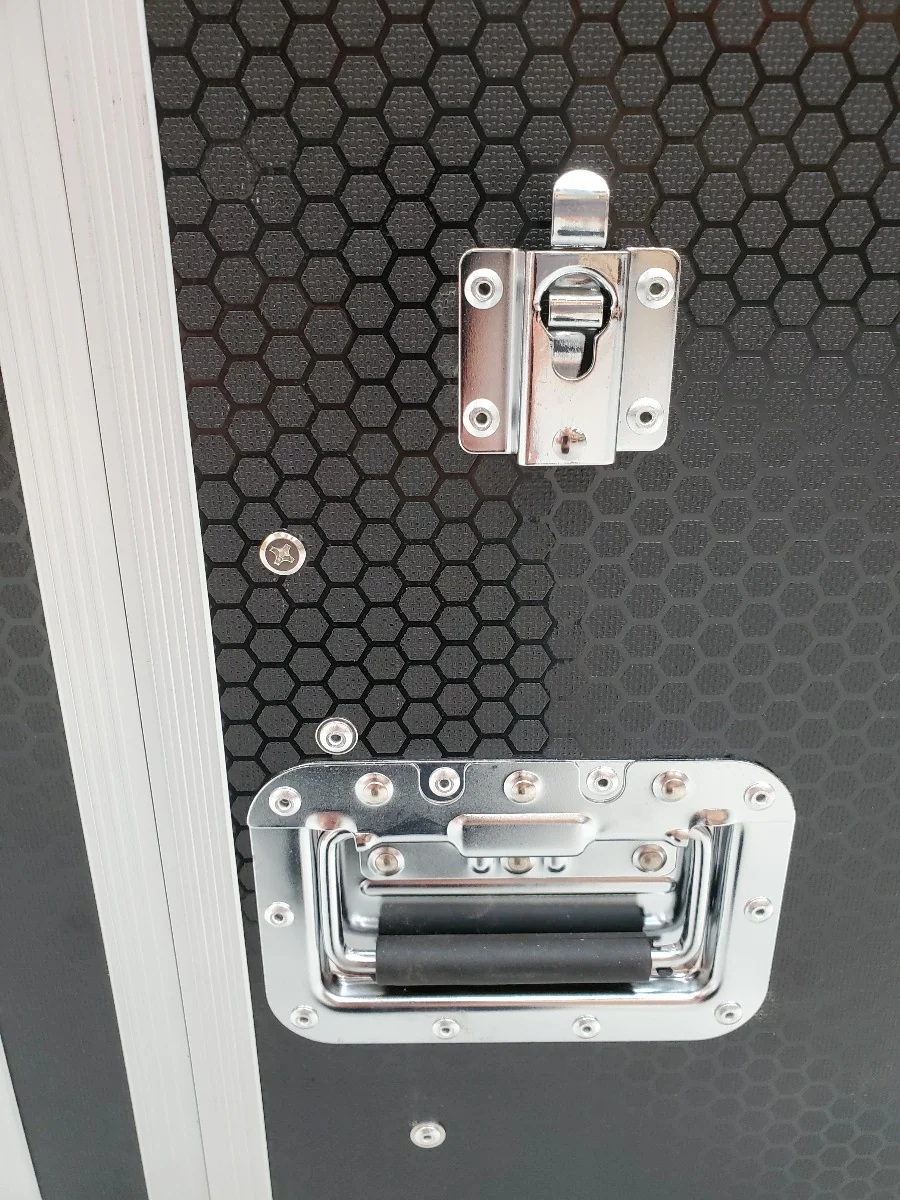

• Recessed latches
• Reinforced handles with rubber grip (recessed)
• Rack screws included
• Secure storage and transport
• Heavy duty castor



Other dimensions:

Table size on each side: 750mm long x 530mm deep

Table height: 666mm - good height for sitting down position

Mixer frame- 10RU (444mm), 19" wide (482.6mm)
The top handle can be removed to fit longer mixers as the depth of the body of the case is 520mm. There is also 70mm clearance inside each front and back lids. So total internal depth including lids is 660mm.
Internal height of mixer compartment is 225mm (To lid)
Rack strip is mounted 100mm up and tilts up from 100mm.

6RU under the mixer (710mm)

Overall width of the case with the wings attached: 2050mm

External dimensions with wheels fitted: 1175mm high x 710mm deep x 545mm wide

Shipping dimensions: 96cm (H) x 56cm (W)x 81.5cm (D)
