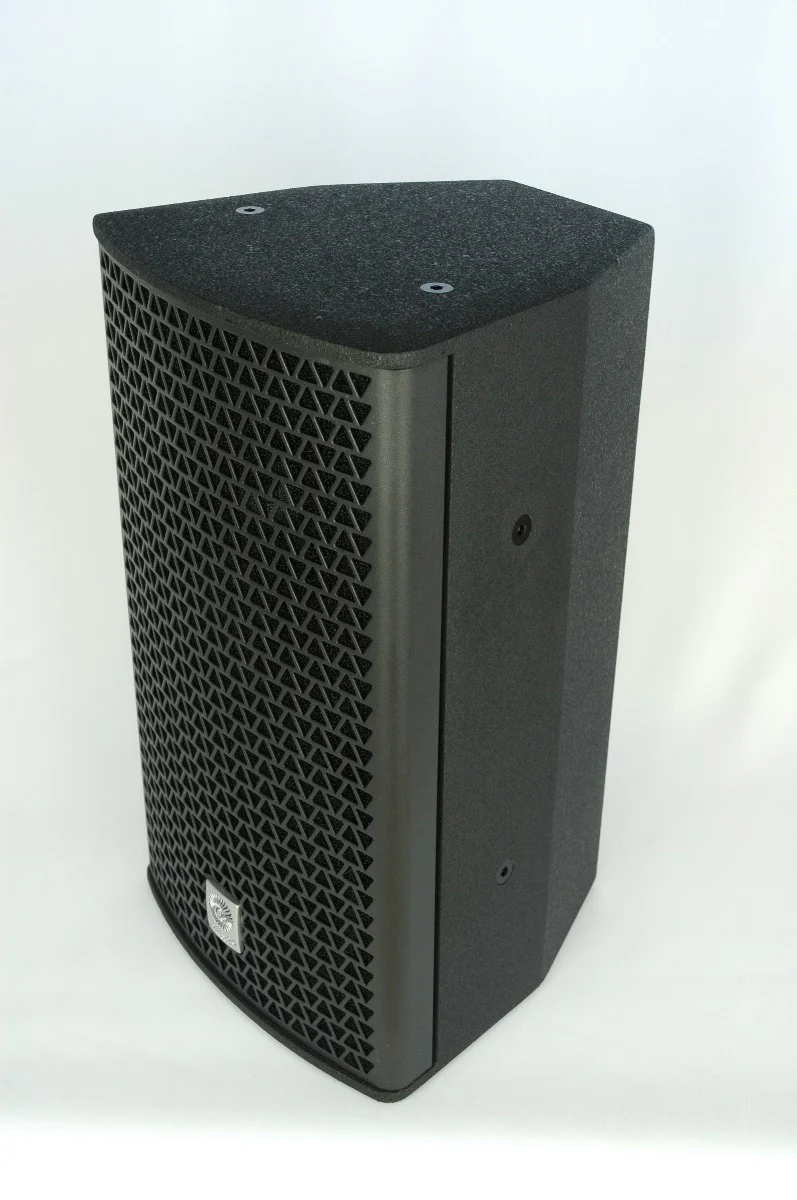

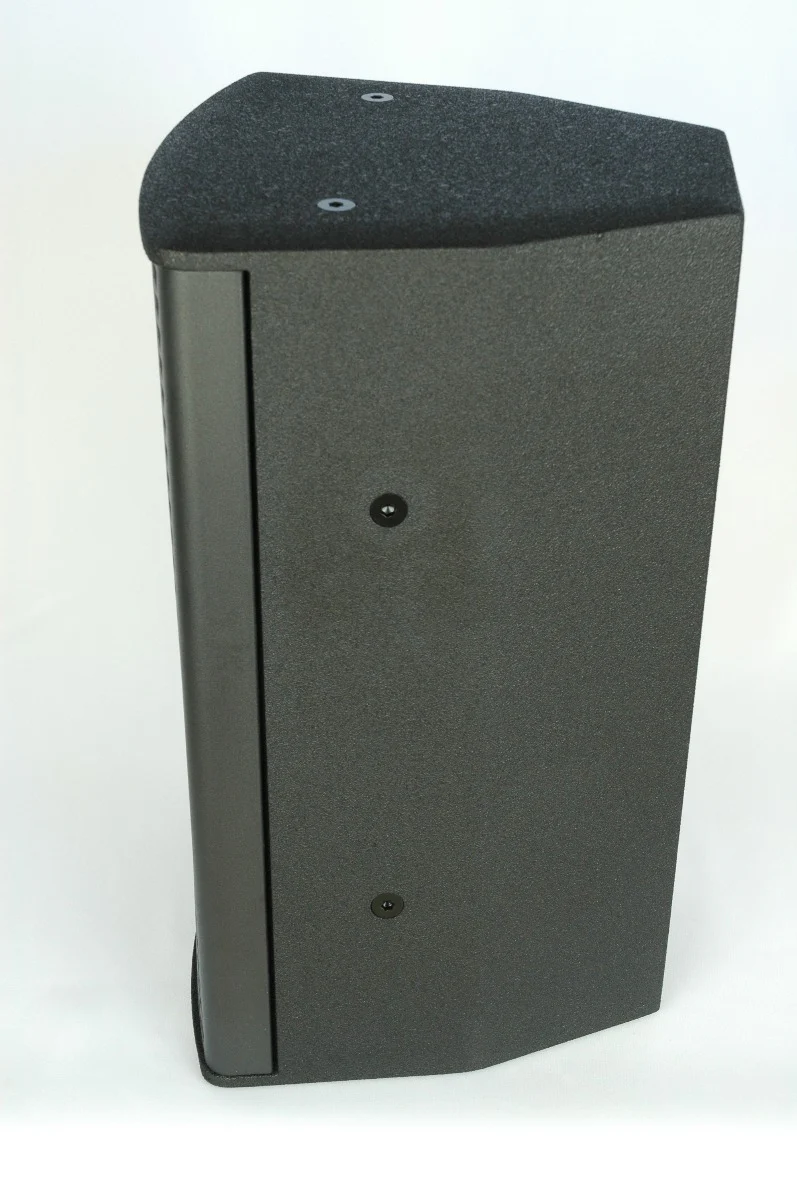

BOB AUDIO CS108 8" PASSIVE SPEAKER 150W RMS

System specifications:

Frequency Response 70 Hz - 20 kHz (±3dB)

Sensitivity 93 dB SPL (1W @ 1m)

Nominal Impedance 8 ohms

Power Rating 150 watts (rms), 300 watts (program), 600 watts (peak)

Maximum SPL 112 dB

Nominal Dispersion 90°horizontal, 60°vertical

Crossover Frequency 2.7 kHz

DRIVERS

Low Frequency 1 x 8(in) 210 mm dia, 50 mm(2in)voice coil dia

High Frequency 1x1.33(in) 33.7mm voice coil dia, 23 mm(1in)throat dia

PHYSICAL

Enclosure Construction 18 mm birch plywood with structured

Finish: Wear-resistant textured black paint

Grille: Powder coated perforated steel,foam backed

Rigging: 9 x M8 internal rigging points

 Integral pole mount socket

Input Connectors: Speakon NL4 x 2

Dimensions HxWxD 440 mm x 270 mm x 280 mm

Net Weight 9kg
